What Are the 4 Types of Gate Guide Rollers?
What Are the 4 Types of Gate Guide Rollers?
Gate guide rollers are essential components that help gates slide smoothly along their track. They keep the gate aligned and prevent it from wobbling or coming off the track. There are four main types of gate guide rollers, each serving a specific function based on the gate design and the level of support required.

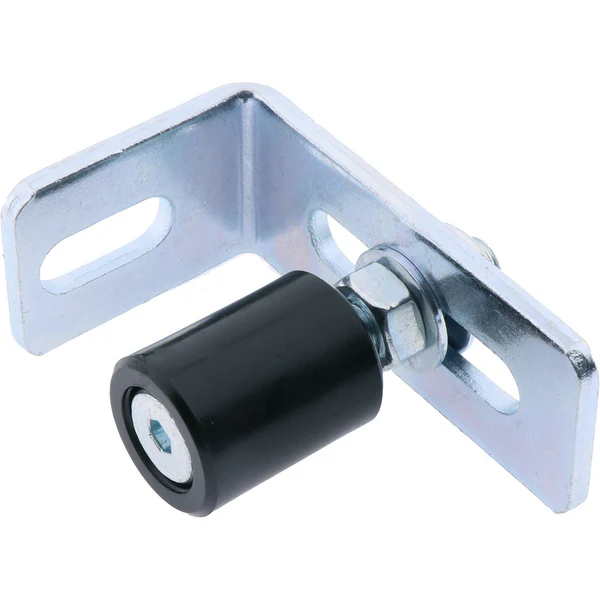

1. Single Roller with Right-Angle L Bracket
This type features a right-angle L-shaped bracket with one nylon roller positioned underneath. It's typically used for smaller gates that don't require much support. The single roller helps guide the gate along its path, ensuring smooth movement while preventing it from leaning or swaying.

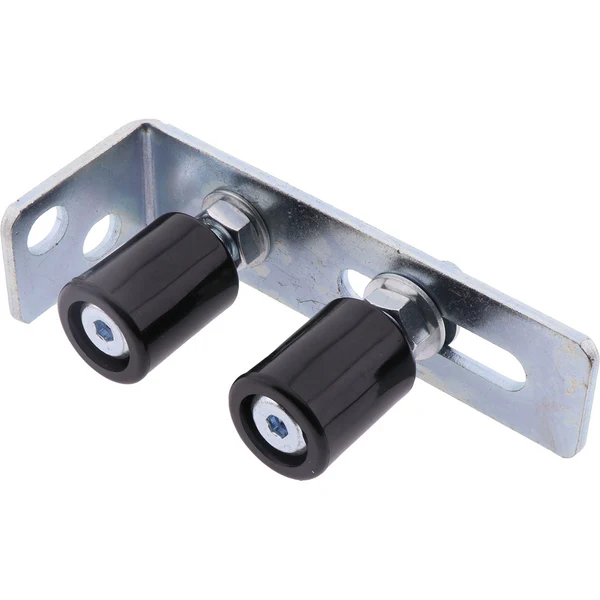

2. Double Roller with Right-Angle L Bracket
The double roller design has two nylon rollers attached to the L-shaped bracket. This provides more stability and is ideal for medium-sized gates. The additional roller gives better support, reducing the chances of the gate derailing or shifting during use.

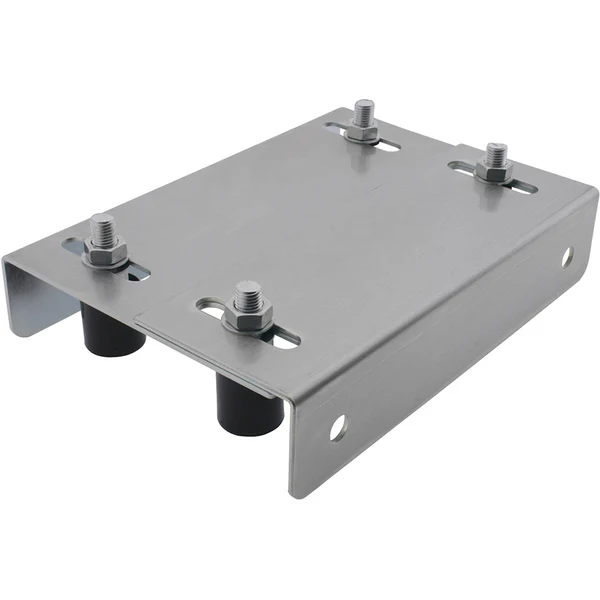

3. Four Roller with Right-Angle L Bracket
This type includes four nylon rollers mounted under a larger bracket. It offers maximum support, making it perfect for larger, heavier gates. The extra rollers guide the gate's weight more evenly, which helps extend the life of both the rollers and the gate.

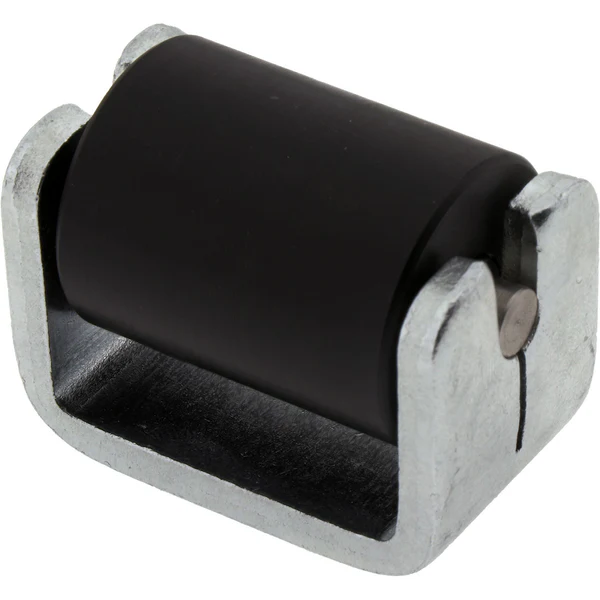

4. U-Shaped Bracket with Center Roller
Unlike the L-bracket designs, the U-shaped bracket has a single roller positioned in the middle. This type is typically mounted on the posts that are located on either side of the gate. It helps the gate stay centered and aligned, preventing it from veering off track during movement.
Conclusion
Gate guide rollers come in four main types, each with specific uses based on the size and weight of the gate. The single, double, and four-roller versions with right-angle L brackets are great for different levels of support, while the U-shaped bracket with a center roller is ideal for stabilizing the gate between posts. Understanding these types can help you choose the right roller setup for your gate.
