Cantilever Gates vs. U-Track Sliding Gates: A Comprehensive Comparison

When it comes to choosing the right sliding gate for your property, two of the most popular options are cantilever gates and U-track sliding gates. Both types are widely used in residential, commercial, and industrial settings, offering excellent security and functionality. In this article, we'll explore the key differences between these two gates to help you decide which one is best for your needs.

What Are Cantilever Gates?

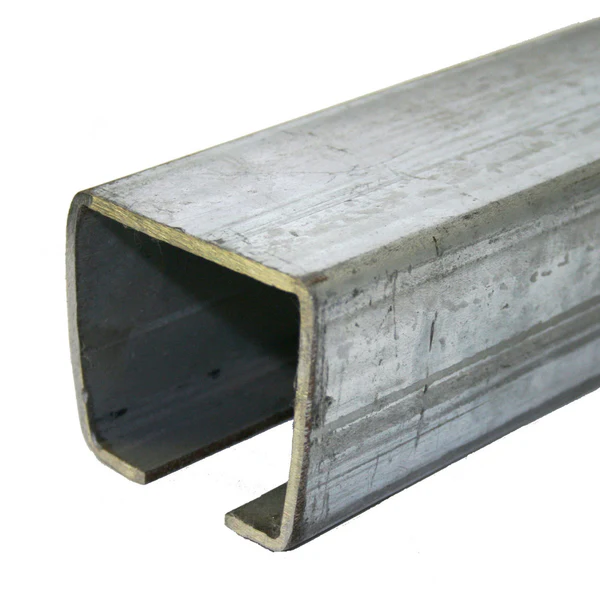

Cantilever gates operate without any contact with the ground. Instead, they are suspended above the ground and slide open and closed on rollers mounted on one side of the opening.

Key Features of Cantilever Gates:

• No Ground Track: These gates and track are suspended above the ground, making them ideal for uneven or sloped surfaces.
• Smooth Operation: The gate glides on a set of rollers, providing smooth and quiet movement.
• Minimal Obstructions: Since there’s no track on the ground, you won’t have to worry about debris, snow, or ice interfering with gate movement.

Pros of Cantilever Gates:

• Great for rough, uneven, or sloped terrain
• No issues with ground track obstructions
• Minimal maintenance required
• Provides a modern, sleek look

Cons of Cantilever Gates:

• Typically more expensive due to the complexity of the design
• Requires more lateral space for the gate to fully open+

What Are U-Track Sliding Gates?

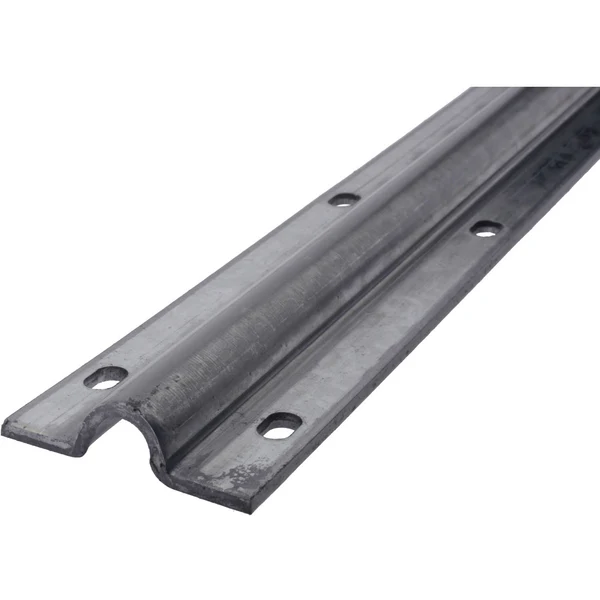

U-track sliding gates operate on a track installed on the ground. The gate slides on wheels that run along the embedded track, keeping the gate aligned and stable throughout its movement.

Key Features of U-Track Sliding Gates:

• Ground Track: A U-shaped track is laid along the path of the gate, which guides the gate as it opens and closes.
• Reliable Operation: These gates offer smooth and reliable movement and are well-suited for flat surfaces.
• Load Capacity: U-track gates are designed to handle both light and heavy loads, similar to cantilever gates, making them suitable for various settings, from residential to industrial.

Pros of U-Track Sliding Gates:

• Generally less expensive than cantilever gates
• Ideal for flat, even terrain
• U shape resists dirt and debris buildup in the track
• Capable of handling similar load ratings as cantilever gates

Cons of U-Track Sliding Gates:

• Less suitable for uneven or sloped surfaces
• Regular cleaning of the track is required, but the risk of dirt buildup is low

How to Choose Between Cantilever and U-Track Sliding Gates

1. Terrain Considerations:

   • Cantilever Gates: Ideal for uneven, sloped, or rugged terrain, as they don’t rely on a ground track.
   • U-Track Gates: Best suited for flat, even surfaces where the track can be properly installed.

2. Maintenance Requirements:

   • Cantilever Gates: Require less maintenance since there’s no ground track to clean or maintain.
   • U-Track Gates: Although they require periodic track cleaning, modern U-track systems are designed to minimize dirt and debris buildup, keeping maintenance low.

3. Space and Installation:

   • Cantilever Gates: Require more lateral space to slide open, as the gate is supported off the ground and needs clearance.
   • U-Track Gates: Need less horizontal space since the gate remains closer to the fence line, making them ideal for properties with limited space.

4. Budget:

   • Cantilever Gates: Generally more expensive to install due to the additional components and engineering involved.
   • U-Track Gates: Typically more budget-friendly, making them a popular choice for those seeking a cost-effective option.

Conclusion

Both cantilever and U-track sliding gates are excellent options, with similar load ratings and performance. If your property has uneven or sloped terrain, or you want a low-maintenance gate, a cantilever gate is the way to go. However, if your ground is flat and you’re looking for a more budget-friendly option, a U-track sliding gate will serve you well.

Ultimately, the best gate for your property depends on your specific needs, space, and budget. Both options are durable, secure, and reliable, making either choice a great investment for your property’s safety and curb appeal.
