Support Wheels 78mm 600kg Load

Support Wheels 78mm 600kg Load

Code: 5451

$433.93 NZD
$433.93 NZD
Sale Sold out

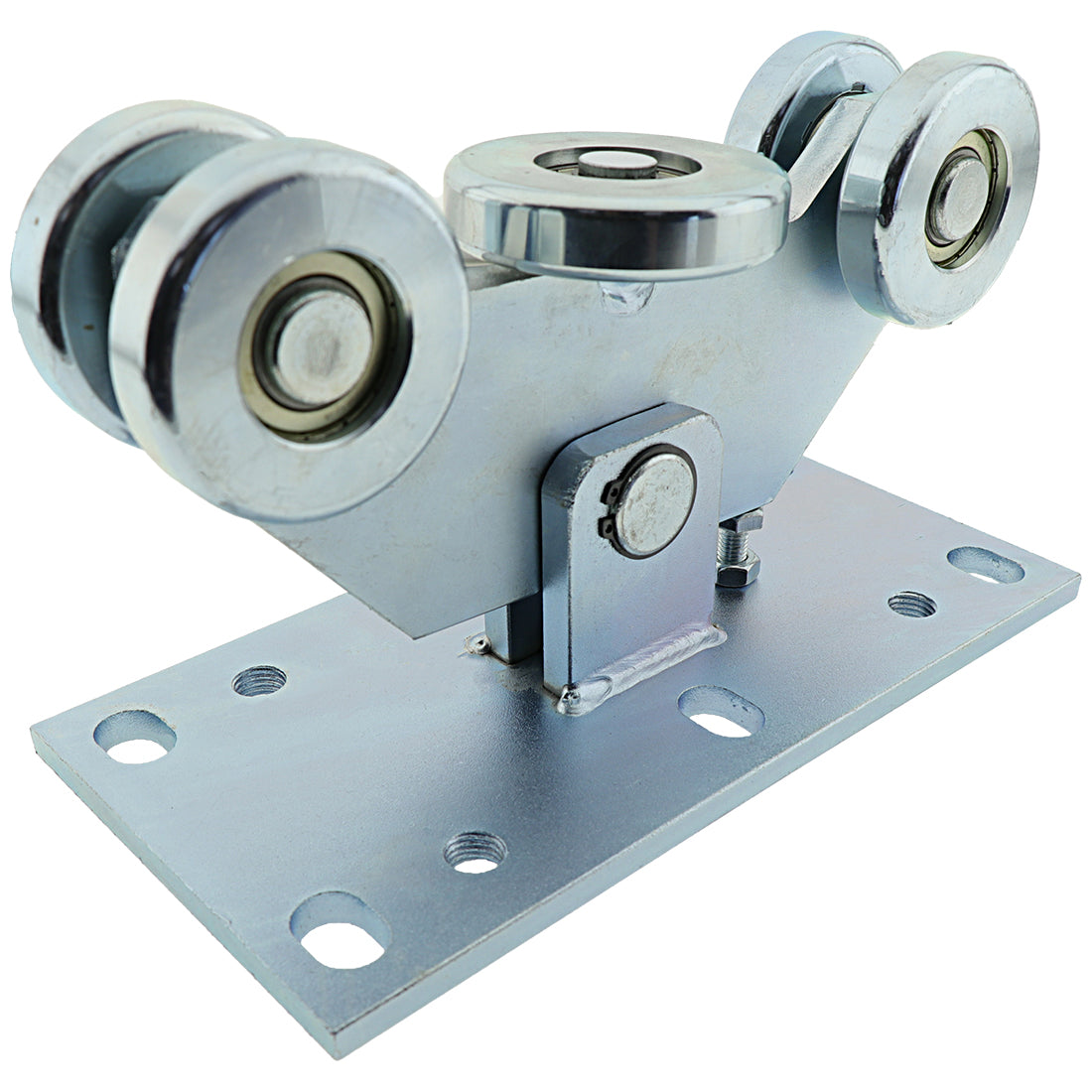

The 5451 Cantilever Gate Wheel is designed to suit Cantilever Channels 5434 and 5438, providing smooth and stable operation with its zinc-plated finish for enhanced durability. With a load rating of 600kg, it ensures reliable performance for gates with evenly distributed weight.
View full details
Play Video Watch Product Video

Products in Support Wheels

Click column to sort

Swipe to scroll →

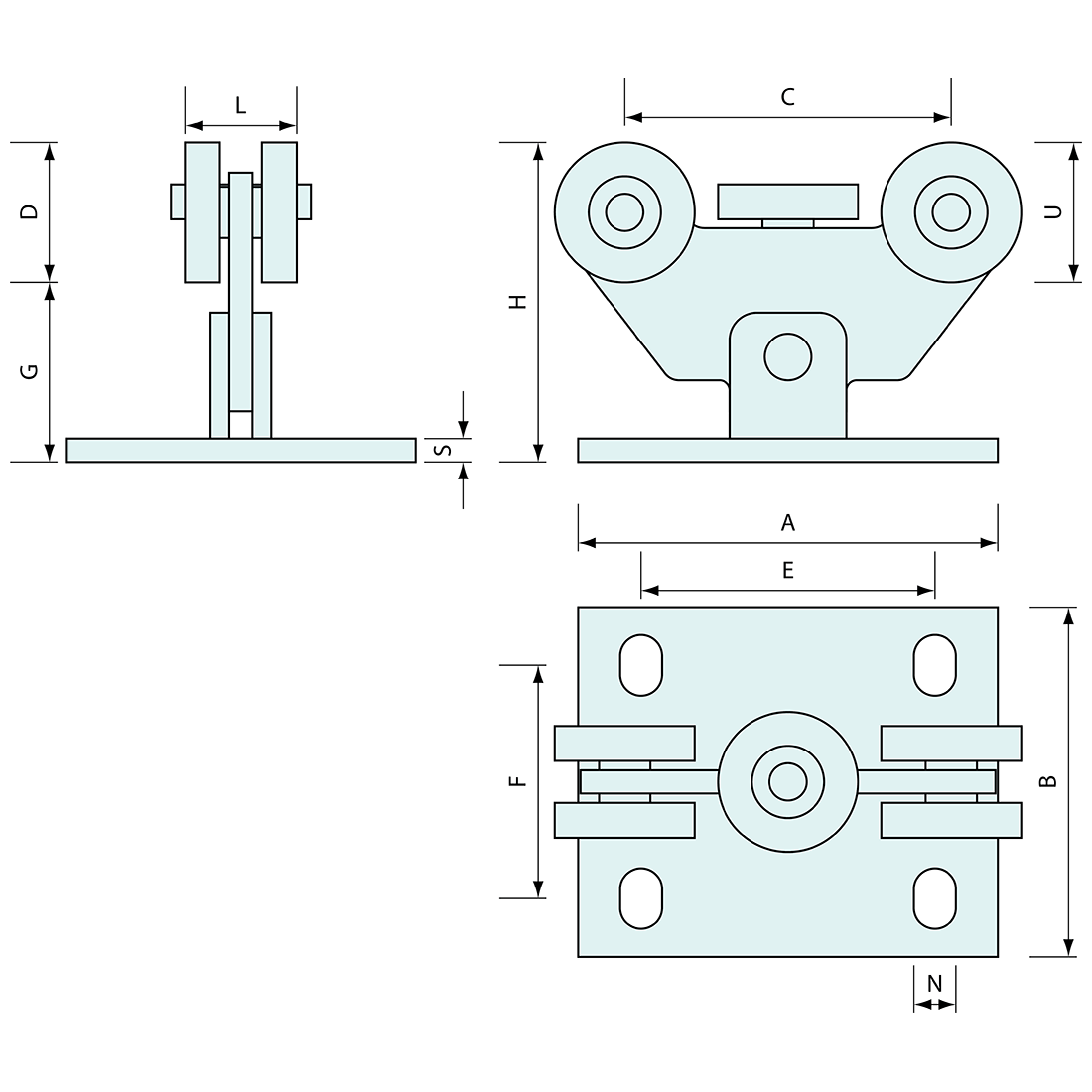

Code A mm B mm C mm D mm E mm F mm G mm H mm L mm N mm S mm U mm
5451 300.0 150.0 222.0 78.0 261.0 100.0 95.0 173.0 66.0 18.0 10.0 78.0 View
5448 180.0 150.0 135.0 60.0 126.0 100.0 67.0 135.0 47.0 17.0 10.0 60.0 View

  • Used On

    Gates, Tennis Court Gates, Swimming Pool Gates, Farm Gates, Household Gate, Section Gate, Yard Gate, Pedestrian Gate, Sliding Gates, Iron Gates

  • Used For

    Gates or a Guide Wheel

  • Also Called

    Cantilever Trolley, Heavy Duty Trolleys, Heavy Duty Gate Wheels, Heavy Duty Roller Wheels, Sliding Gate Wheels
